Đặc tính kỹ thuật

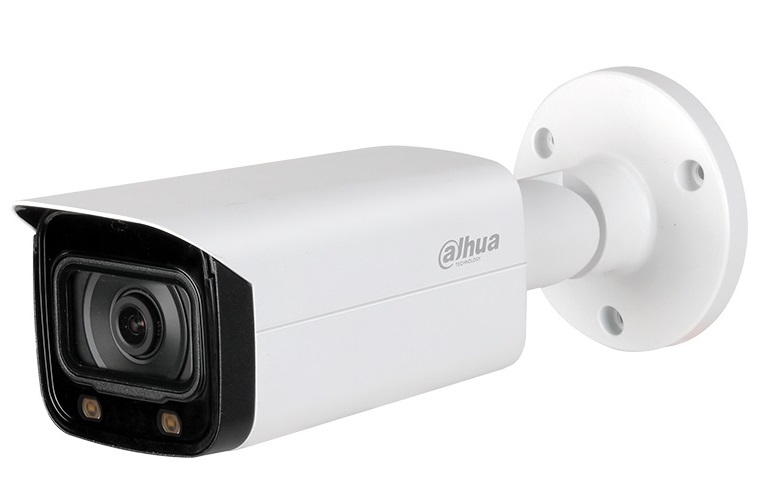

| Model | HAC-HFW2249TP-I8-A-LED |
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/4s~1/100,000s NTSC: 1/3s~1/100,000s |
| Minimum Illumination | 0.001Lux/F1.0, 0Lux LED on |
| S/N Ratio | More than 65dB |
| IR Distance | 40m |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (6mm Optional) |
| Max Aperture | F1.0 |
| Angle of View | H: 89.5° (53.8°); V: 47.3° (30°) |
| Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (DIP switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D/3D |
| White Balance | Auto / Manual |
| Smart Light | Auto / Manual |
| Interface | |
| Audio Interface | 1ch in & Built-in Mic |
| Others | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 6.6W (12V DC, LED on) |
| Ingress Protection | IP67 |
| Casing | Aluminium |
| Dimensions | 244.1×90.4×90.4 mm |
| Weight | 0.75kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
